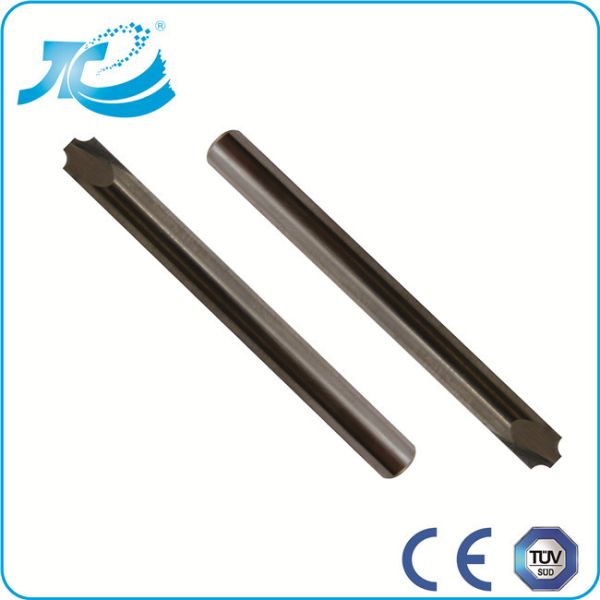

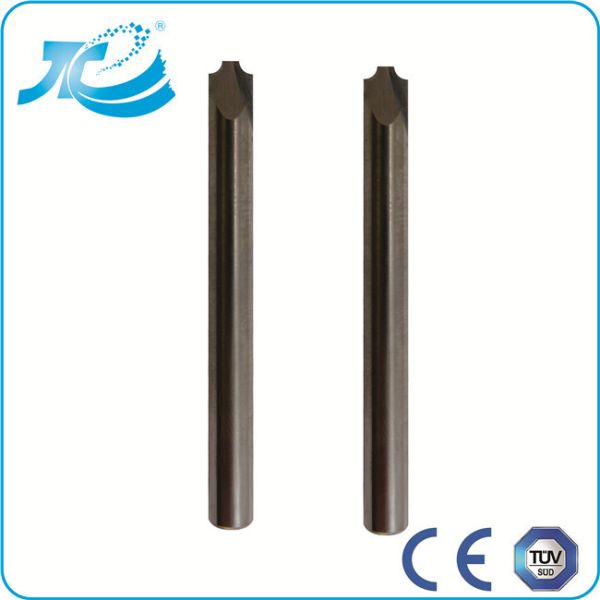

Tungsten Carbide 2 Flute Fillet End Mill , Long Shank Inner R End Mills

Dongguan Diamond Hardware Factory
Dongguan Diamond Hardware Factory
City: Dongguan
Province/State: Guangdong
Country/Region: China
Tel: 86-0769-81886068
Contact Person:
Miss lili

Tungsten Carbide 2 Flute Fillet End Mill , Long Shank Inner R End Mills

Brand Name : JT
Model Number : JT
Certification : CE,TUV
Place of Origin : China
MOQ : 20pcs
Price : Negotiation
Payment Terms : T/T, L/C, Western Union
Supply Ability : 200,000pcs per month
Delivery Time : 5 working days after received your payment
Packaging Details : Each products packed with bubble and then Putted in carton firstly,finally reinforced with wooden case for outer packing
Product Name : Tungsten Carbide 2 Flute Fillet End Mill , Long Shank Inner R End Mills
Material : Tungsten Carbide
Flute : 2 Flute
Length : 50mm
Diameter of rods : 2.7-15.2mm
Helix Angle : Customizable
Contact Now

Tungsten Carbide 2 Flute Fillet End Mill , Long Shank Inner R End Mills

Description


A. Effective freehand stock removal

B. Weld preparation and removal(no contamination)

C. Dressing and fetting

D. High life time

E. High safety during working

We use 100% original raw material, the micro grain tungsten carbide powder and cobalt powder(from German)to make the carbide rod, hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2), this carbide rod can ensure the end mills with very strong abrasive resistance and impact strength.

Original raw micro grain material, high hardness and T.R.S.

1, Co: 10-12%, WC: 88-90%,
Grain size: 0.4μm,
Hardness: 92.5-94.0 HRA,
T.R.S.: 4200-4800 N/mm2,
Density: 14.3-14.8 G/cm3

2, We got 250T Extruder, 10MPa Overpressure Sintering Furnace-Vacuum
Dewaxing, these two equipments are very very important for manufacture and high quality carbide rods.

3, We use our own carbide rod for 90% of cutting tools.

4, We have introduced advanced CNC grinding machines in operating,Rollomatic,Schneeberger from Switzerland, ANCA from Australia, Zoller from German,KEYENCE from Japan,set up(Japan FANUC, brother processing center) tool laboratory test cut.Our technology from Taiwan. Guarantee high precision and good performance.

5, Helix Angle: 38-42 °(we could do 4 of them are 37°)
Diameter of cutting edge: 1.5-3.0mm
Diameter of rods: 2.7-15.2mm
Length: 50mm
Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 2/4


Super coating
Non

Applications
Copper, Aluminium Alloy , Cast Iron, Carbon steel, Tool steel,
Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc

Price Performance Ratio
From tungsten powder to end mills, that's the reason of our competitiveness!
Make sure about each piece end mill has a good quality,high precision and good performance.
More discount will be offered according to exact quantity.
Welcome to be our agents, OEM is also available.

Specifications:


R Angle

Diameter/D1

External Diameter

O.A.L/L3

Shank Dia/D2

Flutes

R0.50

1.5

2.7

50

4

2

R0.75

1.5

3.2

50

4

2

R1.00

1.5

3.7

50

4

2

R1.25

1.5

4.2

50

4

2

R1.50

1.5

4.7

50

4

2

R1.75

1.5

5.2

50

4

2

R2.00

1.5

5.7

50

4

2

R2.50

1.5

6.7

50

6

2

R3.00

1.5

7.7

50

6

2

R4.00

2.0

10.2

50

8

2

R5.00

3.0

13.2

50

10

2

R6.00

3.0

15.2

50

12

2



Products display
